Addressable 1 loop Fire Alarm Control Panel,1 Loop,Ravel

Model - Avani

UL Listed

Abu Dhabi & Dubai Civil Defense Approved

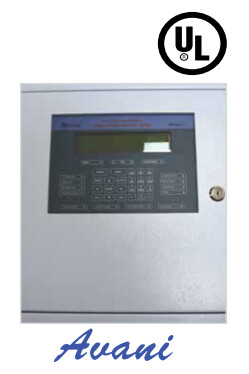

AVANI 1 LOOP with expand card for 2 loop Fire Alarm Control Panel

OVERVIEW : Avani is a compact, cost effective intelligent addressable control panel having an extensive list of powerful features. The power supply with separate metal cabinet and all other master control and indicating boards housed in a metal cabinet, provide a complete fire control system\ for most applications.The panel has maximum capability for 2 loop cards, which are plugged into the main circuit board.There is an option for remote and local programming of the control panel using AVANI upload/ download utility.

FEATURES ► As per UL 864, 9th Edition & NFPA 72 ► Networkable ► User Friendly configuration ► Inbuilt conventional circuit ► Touch Key pad for user friendly operation ► Device / Detector wise configuration facility ► Auto Learning facility ► Programmable detector sensitivity ► 2000 Event storage with Real Time Check ► Up to 192 Grouping Facility ► Multiprotocol ATTRIBUTES OPTIONAL MODULE ► Auto Dialer / GSM Module ► Ethernet Module ► Printer Interface Module ► 40 X 4 Character LCD display ► Maximum 1 numbers of loop cards with Class A Style 5, 6 or 7/ Class B Style 4 wiring ► Maximum 159 devices per loop ► Day / Night Mode Facility ► USB 2.0 Interface for PC connectivity ► RS 485 Communication facility for Network / Repeater ► Programmable Auto Silence Facility ► Programmable Trouble Reminder Facility ► Programmable Silence Inhibit ► Two no’s of Programmable Inputs ► Loop wise test facility ► Battery low visual warning with audible tone. ► Three programmable form C relay for fire, fault and supervisory ► Two no’s of supervise notification appliance circuit
