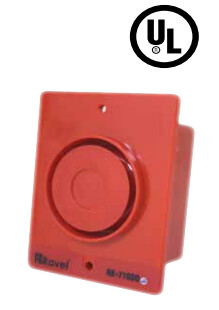

Addressable Loop Sounder,Ravel

Model: RE-716SO

UL Listed, Abu Dhabi / Dubai Civil defense Approved Addressable Loop Sounder

OVERVIEW :The RE-716SO range of addressable Loop powered sounder are designed to be connected to analogue addressable Fire Alarm systems. And these loop powered sounder shoul be connected to the compatible control panel. The RE-716SO loop powered sounder receives their power from analogue addressable comunication loop and it is controlled via addresssable communication. The address of these device should be in the range of 128 to 159 addresses and it shall set by 8 way DIP switch. FEATURES ► Addressing by 8 way DIP switch ► Low Standby Current ► Slim and Sleek ► 8 different tone selection by using 4 way DIP switch ► Wall or Ceiling Mount ELECTRICAL SPECIFICATION Operating Voltage : 17~28VDC Operating Current : 8 mA Standby Current : 0.5mA Sound Level : 80db @ 1m Sound Type : Piezo Electric Tone Type : 8 Different Types Material : ABS Plastic Operating Temperature : 0°C to 49°C / 32 Color : Red Mount type : Surface mount / Flush mount Dimensions : 96H x 76L x 28D in mm Back Box : 95H x 75L x 58D in mm
